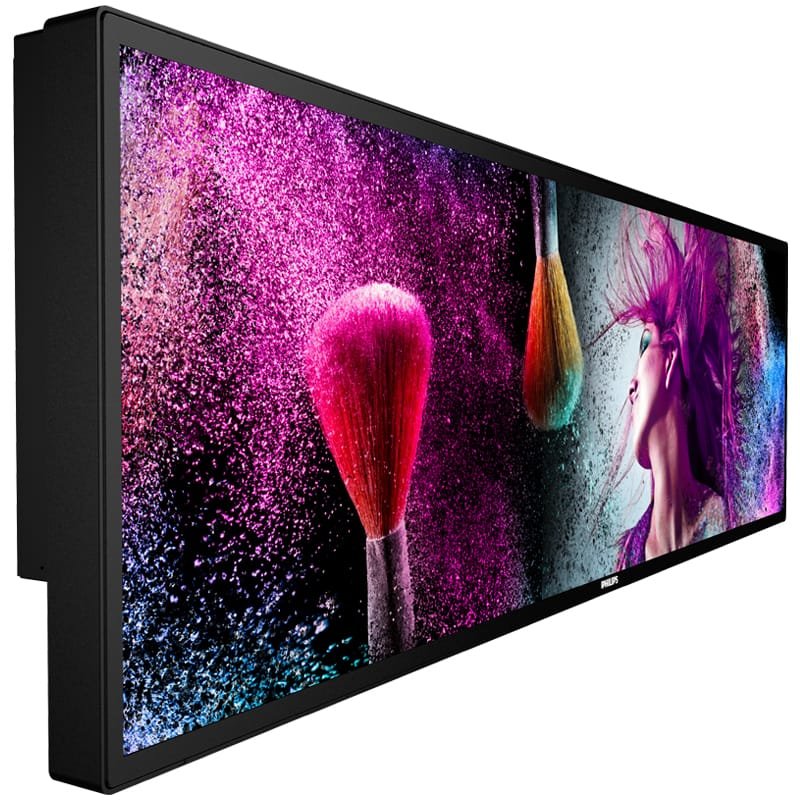

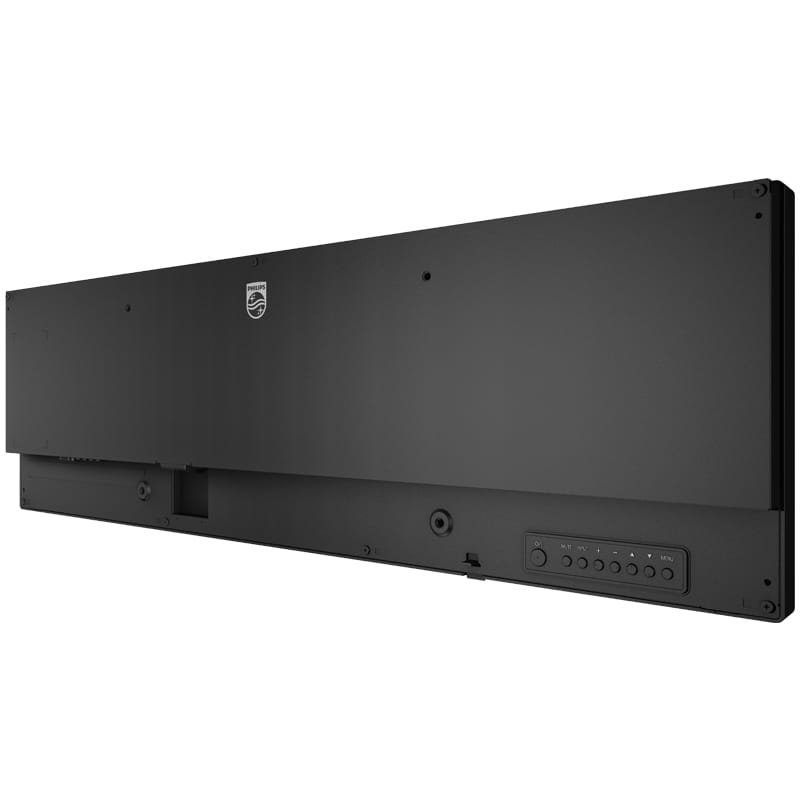

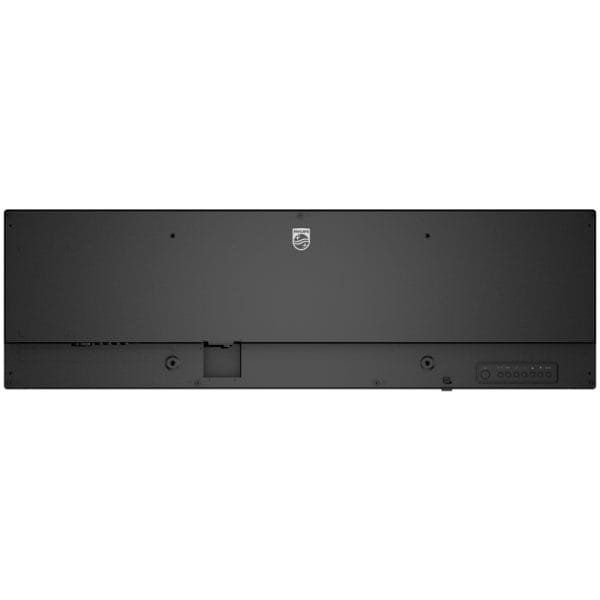

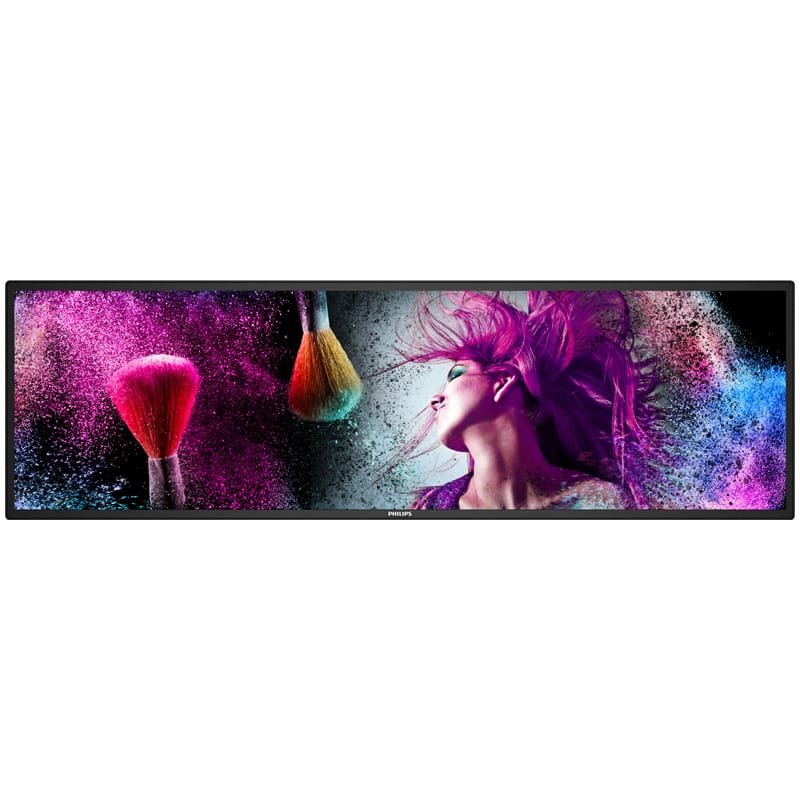

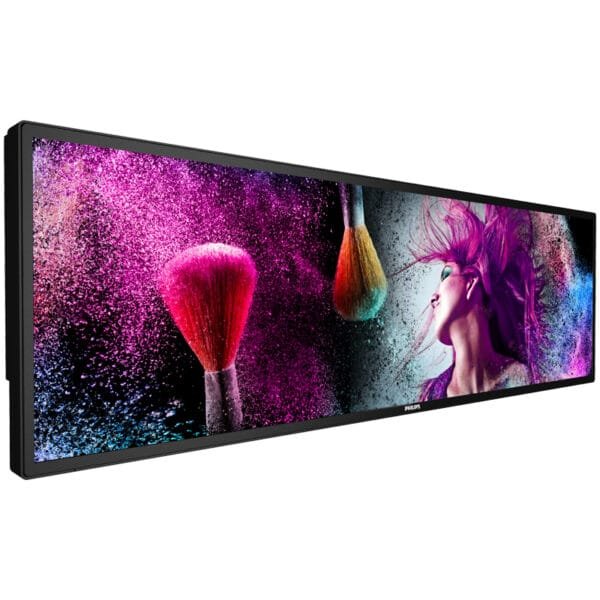

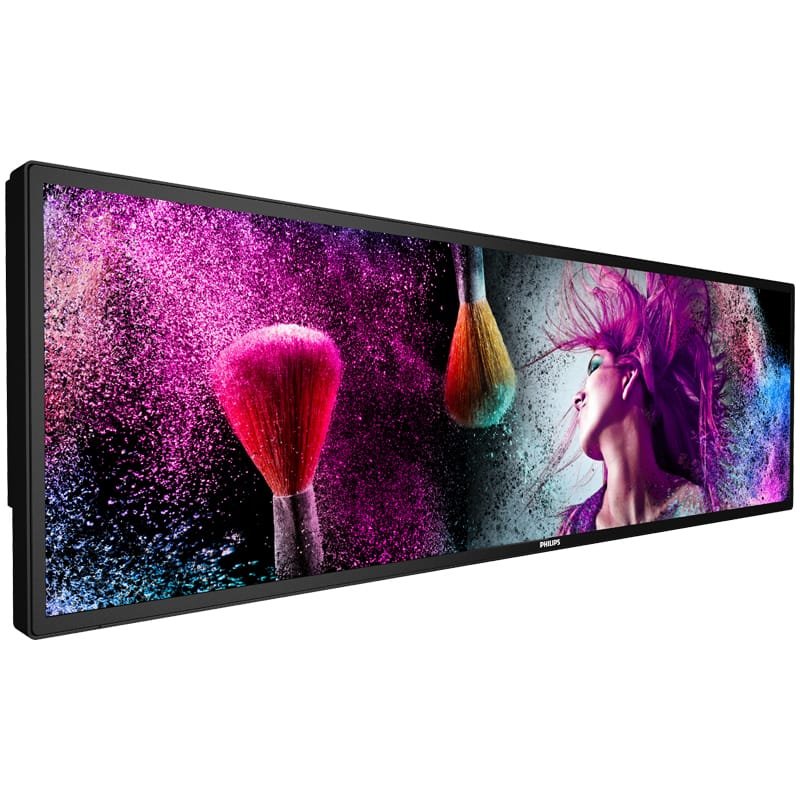

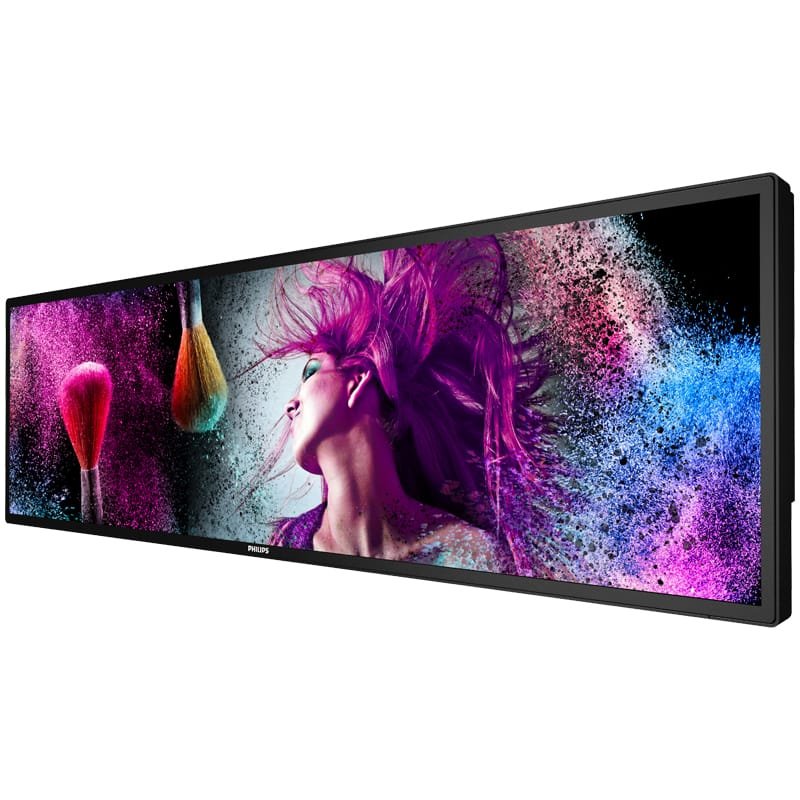

Philips 37″ BDL3050S S-Line Stretched Digital Signage Display

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD
  • Philippine peso (₱) - PHP

Go Wide

Stretched digital signage display

Widen the view. Widen your opportunities with Philips S-Line. With its unique 32:9 design and 1920×540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.

Description

Ready for impact

• Operate, monitor and maintain with CMND & Control
Smart and robust

• Android: Run your own app or choose your favorite app to run

• Designed for 24/7 operation for highest accuracy

• Integrated media player. Easily schedule USB content

Versatile and impressive

• High brightness for clearer images

• Simple and powerful daisy chaining for multi-display setup

• Tiling mode. Create tiled set up of your choice

Powered by Android 8

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

Designed for 24/7 operation

Because business never sleeps, our signage displays are designed for 24/7 use for highest accuracy and critical environments. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.

High brightness (700 cd/m2)

Make a big impact in bright or semi-outdoor locations. This ultra-high-brightness 700 cd/ m2 display is perfect for attracting attention in large, busy areas that are subject to high ambient light.

Integrated media player

Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

HDMI Daisy chain

Link multiple displays with HDMI Daisy chain. Simply connect the HDMI Out port to a HDMI In of another display to create the most stunning experience around.

Tiling mode

Connect two or more Philips professional displays to create a tiled set up with only one external device. A single player takes care of your custom content, no matter the number of displays.

Additional Information

Picture/Display
Diagonal screen size (inch) 37
Panel resolution 1920 x 540
Optimum resolution 1920 x 540 @ 60 Hz
Brightness 700
Response time (typical) 8
Aspect ratio 1.339583333
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Pixel pitch 0.47 x 0.47 mm
Display colours Normally Black
Picture enhancement 3/2 – 2/2 motion pull down
3D Combfilter
De-interlacer
Progressive scan
3D MA deinterlacing
Smart Picture
Colour Temperature Adjustment
Colour Enhancement
Noise Reduction
Panel technology AG
Contrast ratio (typical) 166.6673611
Operating system Android 8.0
Placement Landscape (24/7)
Portrait (24/7)
Supported Display Resolution
Computer formats 640 x 480, 60, 67, 75 Hz
720 x 400, 70 Hz
800 x 600, 60 Hz
832 x 624, 75 Hz
1024 x 768, 60 Hz
1152 x 870, 75 Hz
1280 x 720, 60 Hz
1280 x 1024, 60 Hz
1440 x 900, 60 Hz
1680 x 1050, 60 Hz
1920 x 1080, 60 Hz
Video formats 480i, 60 Hz
480p, 60 Hz
576p, 50 Hz
576i, 50 Hz
720p, 50, 60 Hz
1080i, 50, 60 Hz
1080p, 50, 60 Hz

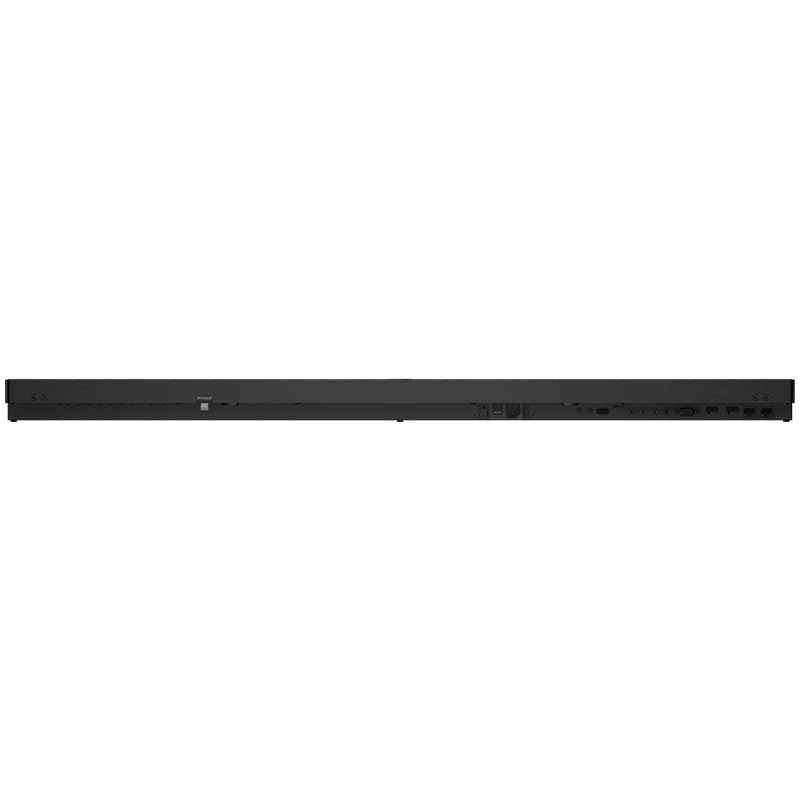

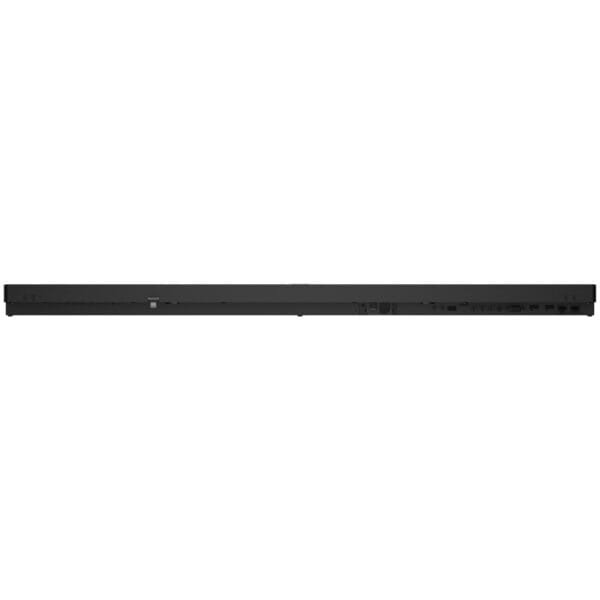

Connectivity
Video input HDMI 2.0 (x 1)
USB 2.0 (x 1)
VGA (Analogue D-Sub) (x 1)
Audio input 3.5 mm jack
Video output HDMI 2.0 (x 1)
Audio output 3.5 mm jack
External control IR (in/out) 3.5 mm jack
RJ45
RS232C (in/out) 2.5 mm jack
Convenience
Signal loop through RS232
HDMI
IR Loop through
Network controllable LAN (RJ45)
Operation Conditions
Temperature range (operation) 0~ 40
Temperature range (storage) -20 ~ 60
Altitude 0 ~ 3000 m
MTBF 50,000
Humidity range (operation)[RH] 20–80% RH (No condensation)
Humidity range (storage) [RH] 5–95% RH (No condensation)
Power
Consumption (Typical) 70
Consumption (Max) 85 W
Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Accessories
Included Accessories AC Switch Cover
IR sensor cable (1.8 m) (x 1)
Philips logo (x 1)
Quick start guide (x 1)
Remote control and AAA batteries
RS232 daisy chain cable
AC power cord
RS232 cable
HDMI cable
Wall mount bolt x2
On-Screen Display Languages Arabic
Dutch
Danish
English
French
Finnish
German
Italian
Japanese
Norwegian
Polish
Portuguese
Russian
Spanish
Swedish
Simplified Chinese
Turkish
Traditional Chinese
Czech
Regulatory approvals CE
FCC, Class A
CB
Warranty 3 year warranty
Internal Player
CPU 2 x A53 + 2 x A73
GPU ARM Mali G51
Memory 2 GB DDR3
Storage 8 GB eMMC
Dimensions
Set Width 928.5
Set Height 282.3
Set Depth 48.7
Bezel width 12.4 mm(T/B); 10.5 mm(R/L)
Wall Mount 400 mm x 200 mm , M6
Product weight 7.76
